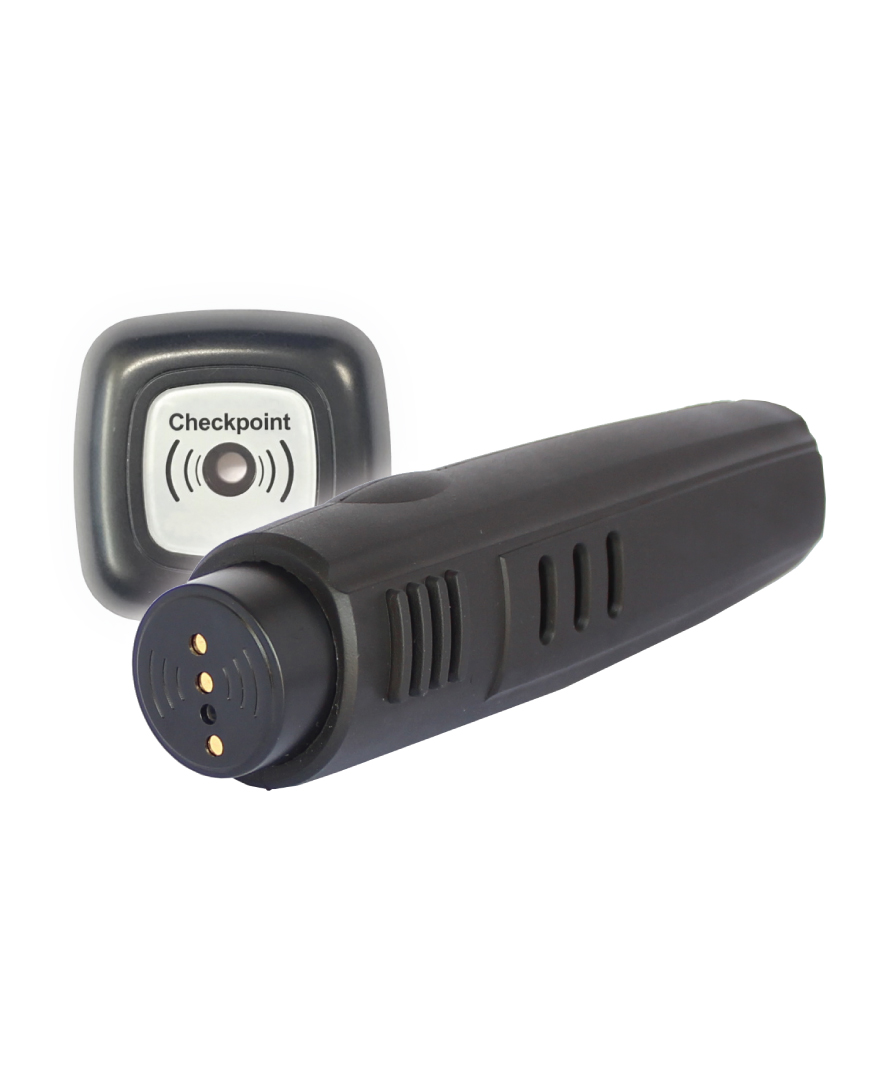

Model | Kingguard

Product Features
  • Waterproof
    It is totally sealed by Poly-carbonate, steel body and
    rubber out shell making it tamper- resistant and waterproof.
    IP67 Still work well immersed in work 48 hours
  • Low Power Reminder
    It will indicate yellow light, Let patrolman charge in time,
    Donít delay patrolling.
  • Power off protection
    Its data can keep ten years without power.
  • Impact records
    It can generate records in software if someone breaks it
  • Large Storage Capacity
    It can store 129.536pcs records circularly
  • Indication
    It will flash blue LED light and vibration
    when read successfully
  • Downloader transfer
    Insert Kingguard reader into downloader data
    will be transferred optional. USB downloader
    to transfer patrol data optional

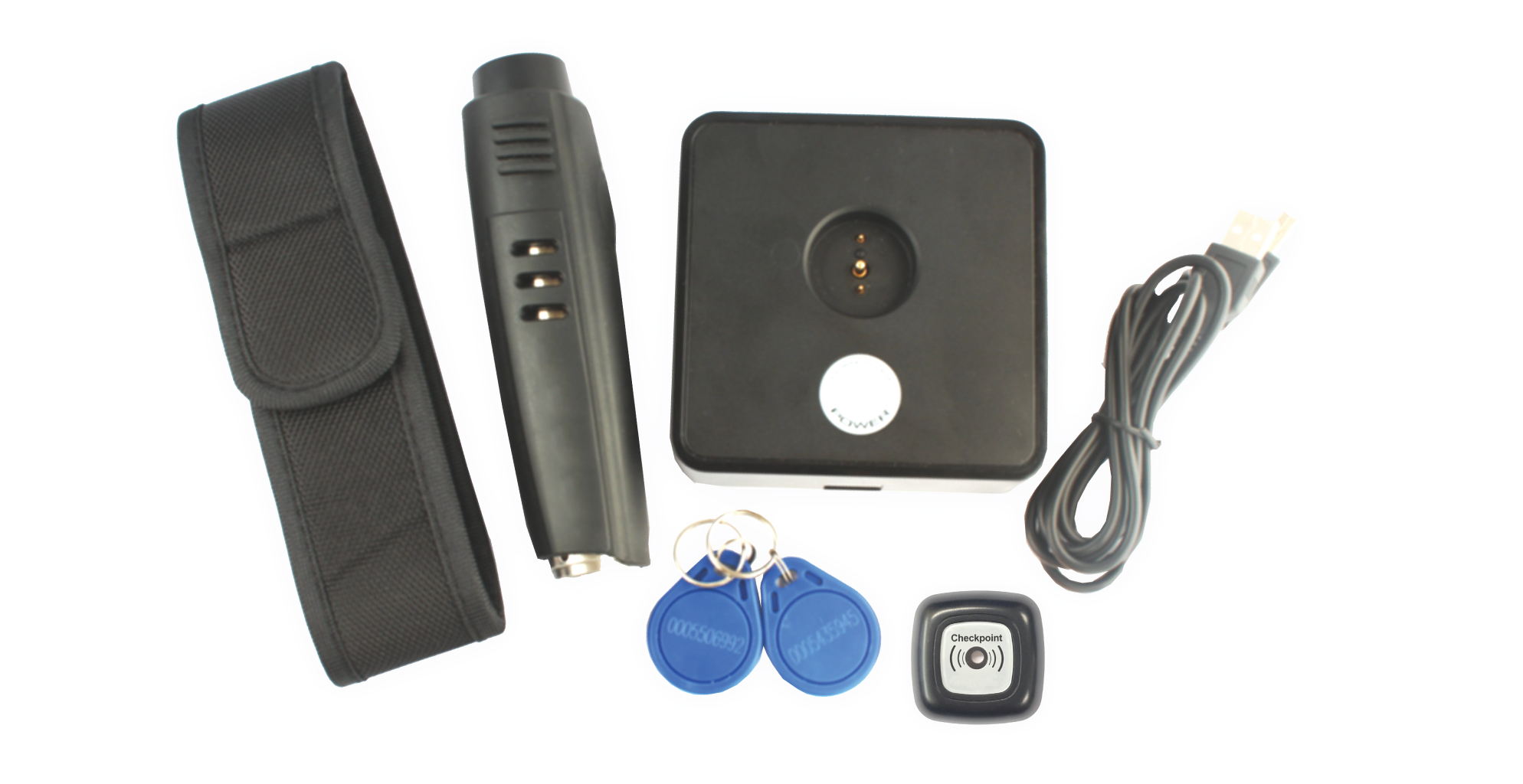

What’s In The Box

1 x Kingguard tag reader
1 x USB downloader
5 x Checkpoint
5 x Patrolman tag
1 x USB cable
1 x Holster
1 x Software


Tag Reader Technical Data

Probe RFID
Read Tag Distance 3-5cm
Storage Capacity 129,536 pieces records,
circulating storage
Material Steel body with rubber out shell
Data safety Data can keep ten years with
power off protection
Read tags indication Blue LED flash& Vibration
Charge Indication Red Light
Battery used 3.7V Lithium Battery
Battery life (fully charged) One year or longer
Protection Grade Based on IP67 design
Shockproof durable enough to withstand 50 times
drop from 1.5m
Waterproof Work well in the rainy day.
Still work well immersed
in work 48 hours
Operate temperature range -40∞Có +85∞C
Dimension 147*36*38mm
Weight 288g

USB Downloader Technical Data

Outer shell material ABS
Light indication Blue light flash when
connect with the PC
Storage temperature range -30∞C~85∞C
Size 100*100*30 (mm)
Weight 160g
