Product | Walkie Talkie

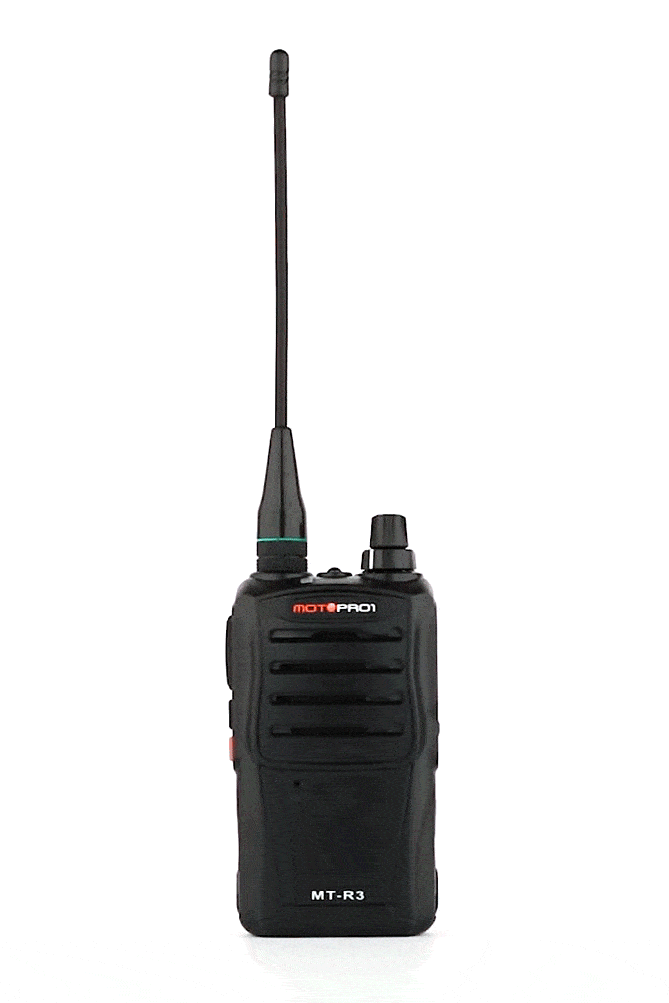

Model | MT-R3

Product Features
  • Frequency Range | UHF 400-480MHz
  • Channel Capacity | 16 Programmable Channels
  • Voltage Rating | DC 3.7V
  • Frequency Stability| ±2.5ppm
  • Operating Temperature | -20°C-+60°C
  • Other Features:
    • Build-in CTCSS
    • Wide/Narrow Band Selectable
    • Time out Timer
    • Voice Prompt Function
REQUEST QUOTATION DOWNLOAD BROCHURE

What’s In The Box

  1. Transceiver
  2. Battery
  3. Charger
  4. Antenna
  5. Belt Clip
  6. Hand strap
MOTOPRO1-MTR3-1988x1024

Specification

General

Frequency Range UHF: 400-480MHz
Operating Temperature -20°C-+60°C
Frequency Combination Phase lock loop frequency synthesize
Frequency Stability ±2.5ppm
Memory Channel 16 Channels
Working voltage DC3.7V
Antenna Impedance 50Ω
Operating Mode Simplex of co-frequency or alien frequency
Dimension 97mmx57mmx30mm
Weight 200g (Include Battery Pack)

Transmitter

RF Power 3W
Modular Mode (W/N) 16K_F3E, 11K_F3E
Max. Freq. Deviation (W/N) ≤5K / ‹2.5KHz
Remain Wave Radiation ‹ -60dB
Transmitting Current ≤1300mA

Receiver

Sensitivity ‹ 0.20μV(12dB SINAD)
Squelch Sensitivity ‹ 0.20μV
Intermodulation Antijamming 50dB
Audio Power output 500mW
Receiving Current ≤100mA
Squelch Standby 20mA
